規格(Specification):

鎖距：38mm, 51mm

Lock Distance: 38mm, 51mm

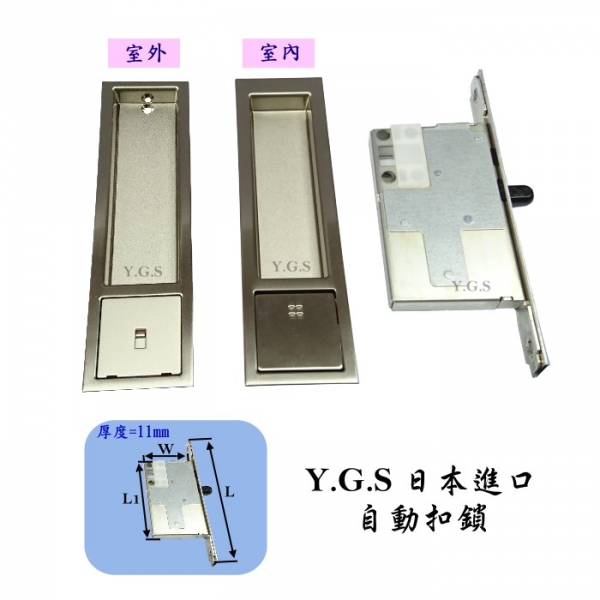

鎖匣：L=150mm、L1=92mm、W=54mm、厚度=11mm

Lock Case: L=150mm, L1=92mm, W=54mm, Thickness=11mm

戶引手： 長=151mm、寬=42mm。挖孔：長=145mm、寬=30mm、深=11.5mm

Flush Pull: Length=151mm, Width=42mm. Cutting Hole: Length=145mm, Width=30mm, Depth=11.5mm

適用門厚：30mm-40mm

Suitable for use with thickness of door: 30mm-40mm

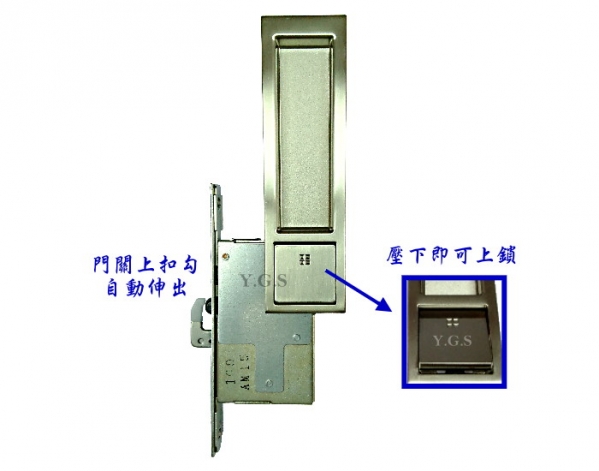

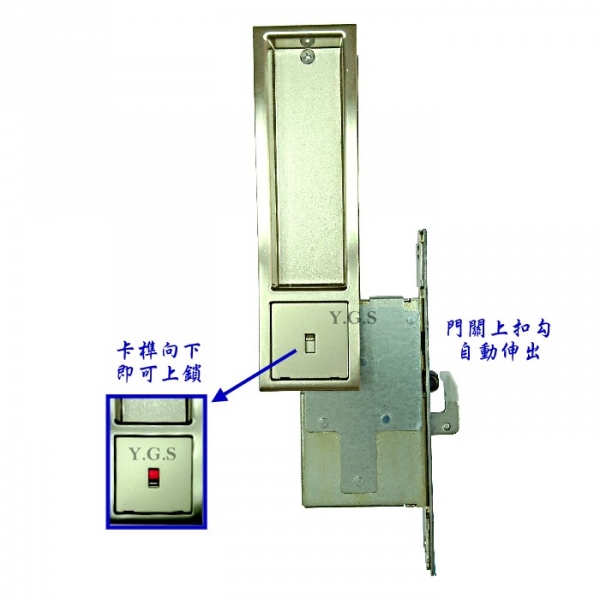

門片關上，立即扣住~室內、室外均可上鎖

Clasp immediately while closing door sheet~it can be locked inside room or outside room.

附安裝說明書

Attach installation instruction
