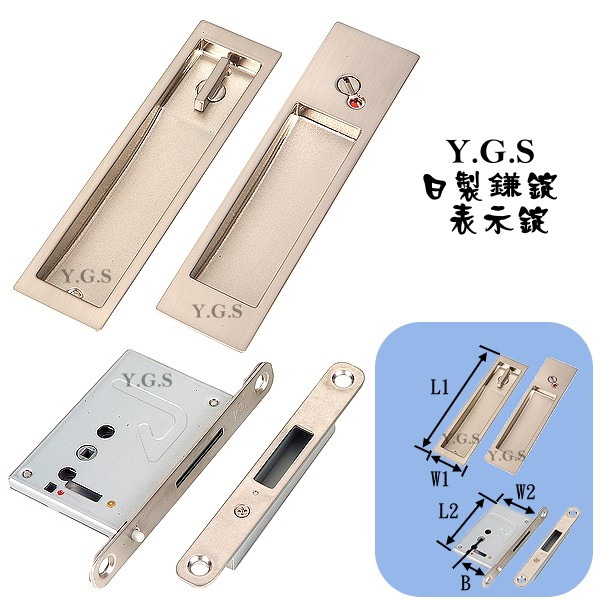

名稱： YGS日製鎌錠(表示錠) Y.G.S Japan Hook Lock(indicator)
型號： lo-ka-3km07xn


正宗日製(MADE IN JAPAN)~極緻產品,鎖腹厚度只有6.5mm.附施工詳細圖.
產品款示表

產品詳細資料：


規格:L1=160mm,W1=38mm,L2=81mm,W2=55mm
         B=36mm ,  四方孔=4mm

         四方棒(附3支):短(門厚28~32mm)

                                   中(門厚32~37mm)

                                   長(門厚37~42mm)

Specification: L1=160mm,W1=38mm,L2=81mm,W2=55mm, B=36mm, hole=4mm

Square rod(with 3): short(28~32mm thick of door), middle(32~37mm thick of door), long(37~42mm thick of door)

正宗日製(MADE IN JAPAN)~極緻產品,鎖腹厚度只有6.5mm.附施工詳細圖.

Made in Japan~nick product. The thick of mortise is only 6.5mm, enclosed instruction.
