產品總覽     〉 鎖系列(LOCKS)     〉 勾鎖(Hook Lock)
點圖放大
名稱： YGS日製鎌錠(間仕切錠) Y.G.S Japan Hook Lock(non-indicator)
型號： lo-ka-2km07xn


正宗日製(MADE IN JAPAN)~極緻產品,鎖腹厚度只有6.5mm.附施工詳細圖.
產品款示表

產品詳細資料：

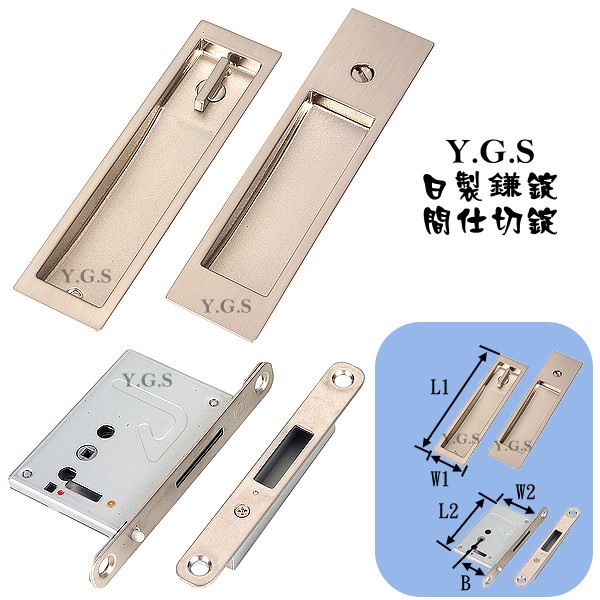

規格:L1=160mm,W1=38mm,L2=81mm,W2=55mm
         B=36mm , 四方孔=4mm
四方棒(附3支):短(門厚28~32mm)
                         中(門厚32~37mm)
                         長(門厚37~42mm)

Specification: L1=160mm,W1=38mm,L2=81mm,W2=55mm, B=36mm, hole=4mm

Square rod(with 3): short(28~32mm thick of door), middle(32~37mm thick of door), long(37~42mm thick of door)

正宗日製(MADE IN JAPAN)~極緻產品,鎖腹厚度只有6.5mm.附施工詳細圖.

Made in Japan~nick product. The thick of mortise is only 6.5mm, enclosed instruction.
